AlmaLinux iSCSI Server & Storage Vault

A compact Linux storage appliance for remote block storage, backup vaulting, recovery, and lab deployment.

OVERVIEW

Remote storage that behaves like local disk.

iSCSI targets allow SCSI commands to operate over TCP/IP networks. A server or workstation can use the target as a remote fixed disk while keeping the storage system physically separate from the client machine.

This design is useful for backup, recovery, distributed storage, classroom labs, and operational testing.

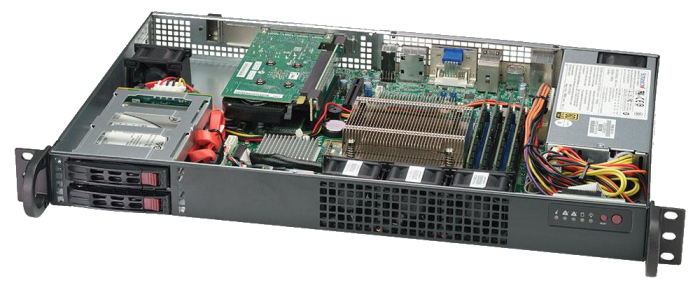

TARGET HARDWARE

Appliance specifications

Form Factor1U rackmount chassis
CPUIntel Xeon E-22xx class processor
Memory16–64 GB DDR4 ECC UDIMM
ChipsetIntel C246
StorageHot-swap HDD/SSD, enterprise SSD options
NetworkDedicated IPMI and Intel GbE interfaces
I/OVideo, audio, USB 3.x, PCIe expansion
Power200W 80 PLUS Gold PSU
